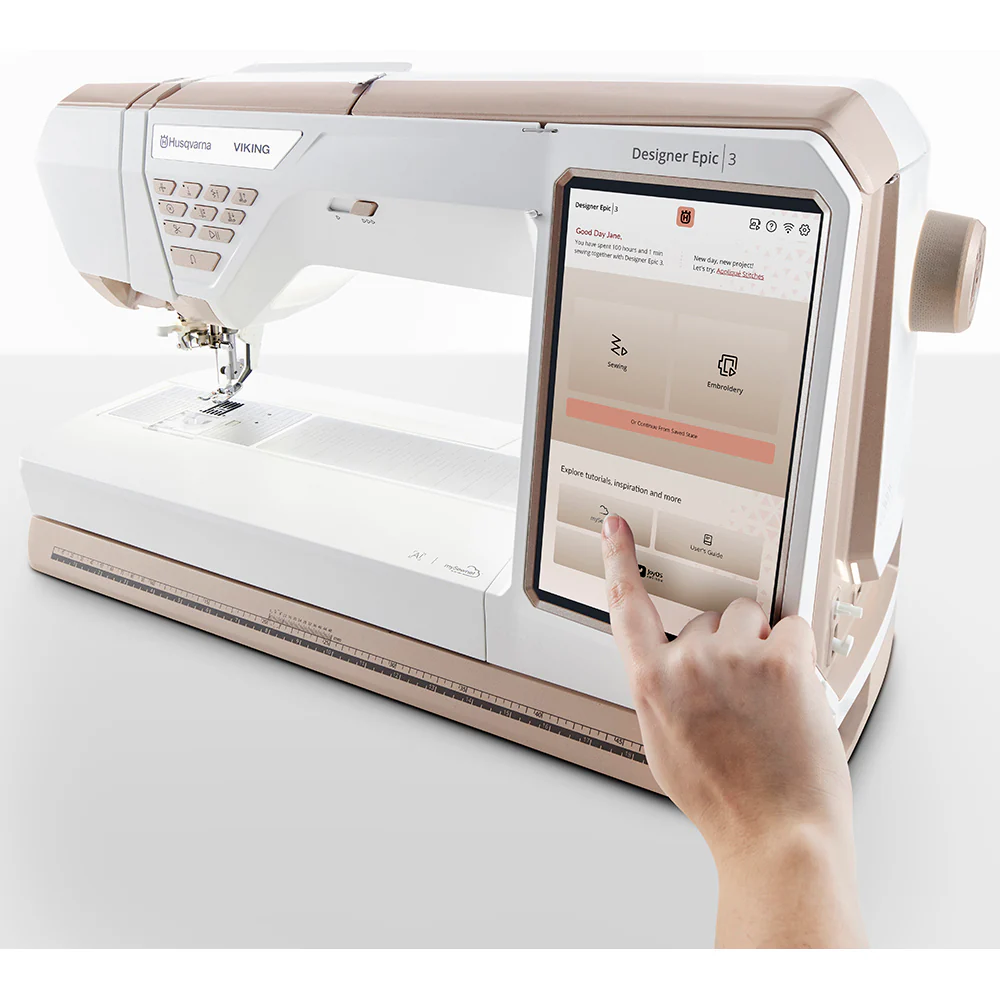

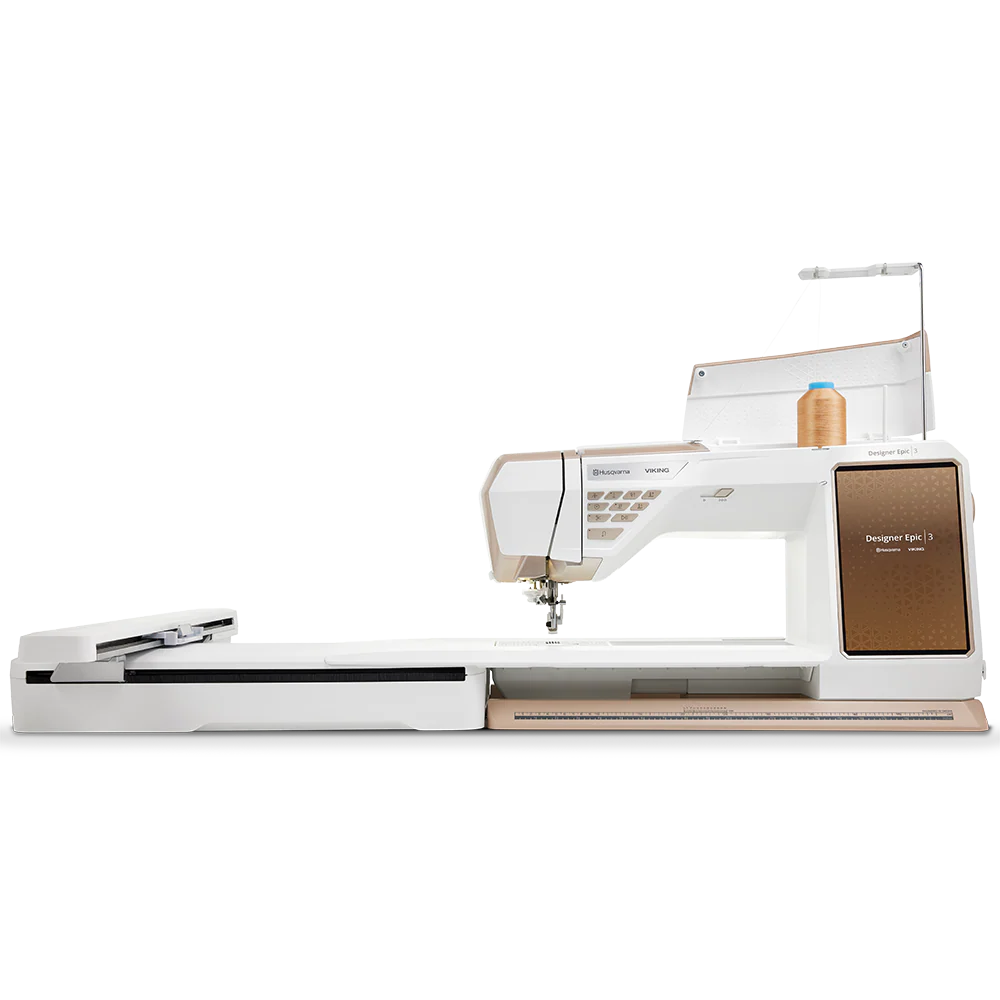

Features of the DESIGNER EPIC 3

Revolutionary Embroidery Unit

Free-Arm Embroidery

Reversible Hoop Embroidery

First in the industry to allow multi-technique embroidery (e.g., felting, bobbin work)
Stitch both sides without un-hooping the fabric

Embroidery & Sewing Projection

Artificial Intelligence

STITCH CREATOR™ Feature

Guided Pictogram Stitch Technique

mySewnet™ Connectivity

Integrated Dual Feed

Specialty Embroidery Attachments

Hoop Scanning & Placement

Embroidery Features

912 built-in embroidery designs
Largest embroidery area: 460 x 450 mm
Embroidery speed: Up to 1,000 stitches/minute
Embroider decorative stitches and buttonholes in the hoop
35 specialty embroidery techniques including THREAD VELVET™, ribbon work, and more
Resize with stitch recalculation
Combine, rotate, and shape designs (23 shape options)
Appliqué creation with 16 stitch and 68 shape options
Step through designs by color or stitch
Built-in embroidery fonts: 8 multi-size + 2 single-size
Match multiple hoopings with exact positioning and projection
Color edit and color block merge/sort
Smart Save, undo/redo, stitch-out timer, and stitch numbering
Load and view multi-format designs via USB or WiFi
Projected design placement grid and guidelines

Sewing Features

871 built-in stitches
6 programmable sewing fonts (can be used for embroidery)
Side-motion & directional sewing (4-way & 8-way)
Stitch width up to 9 mm, 37 needle positions
deLuxe™ Stitch System for thread control
Exclusive Sensor System™ with automatic presser foot lift and fabric detection
Electronic Self-Adjusting Thread Tension
Free-motion sewing (3 modes)
Perfectly balanced one-step buttonholes: 16 buttonholes + 3 eyelets
Sew without foot control (Start/Stop button)
FIX, STOP, Reverse, and Stitch Restart functions
Straight Stitch Plate with Sensor included

Display & Navigation

Additional Features

Accessories Included with the DESIGNER EPIC 3

Embroidery hoops:
- Regal Hoop (465x260 mm)
- Royal Hoop II (360x200 mm)
- Jewel Hoop II (240x150 mm)
- Splendid Square Hoop II (120x120 mm)
- Hoop adapter
Notions & Tools:
- Needles, bobbins (9), thread nets (4), hoop clips (20)
- Spool caps (S/M/L), thread cone holders (2)
- Seam ripper, brush, multipurpose tool, quilting guide
- Straight Stitch Plate, universal tool

Other Inclusions:
